Documenting

After you import your Step Function state machine you can start to add documentation to the resource.

The generated markdown file is split into two main parts:

  • frontmatter
    • Stores information about the Lambda function.
  • markdown
    • Stores documentation about your Lambda function.

Here is an example of a state machine resource markdown file.

---
name: Payment processing with Stripe
description: AWS Step Function
AWS:
  Arn: arn:aws:states:us-west-2:123456789123:stateMachine:MyStateMachine-h9czfryzj
  Name: MyStateMachine-h9czfryzj
  Status: ACTIVE
  Type: STANDARD
  CreationDate: '2023-11-15T17:27:18.287Z'
  LoggingConfiguration: 'OFF'
  Account: '123456789123'
  Service: step-function
catalog:
  updatedAt: '2024-01-05T15:43:19.462Z'
  parent: step-function
  path: payment-processing
owners:
  - dboyne
  - payment-team
---


## How the state machine works

Some cool summary here.

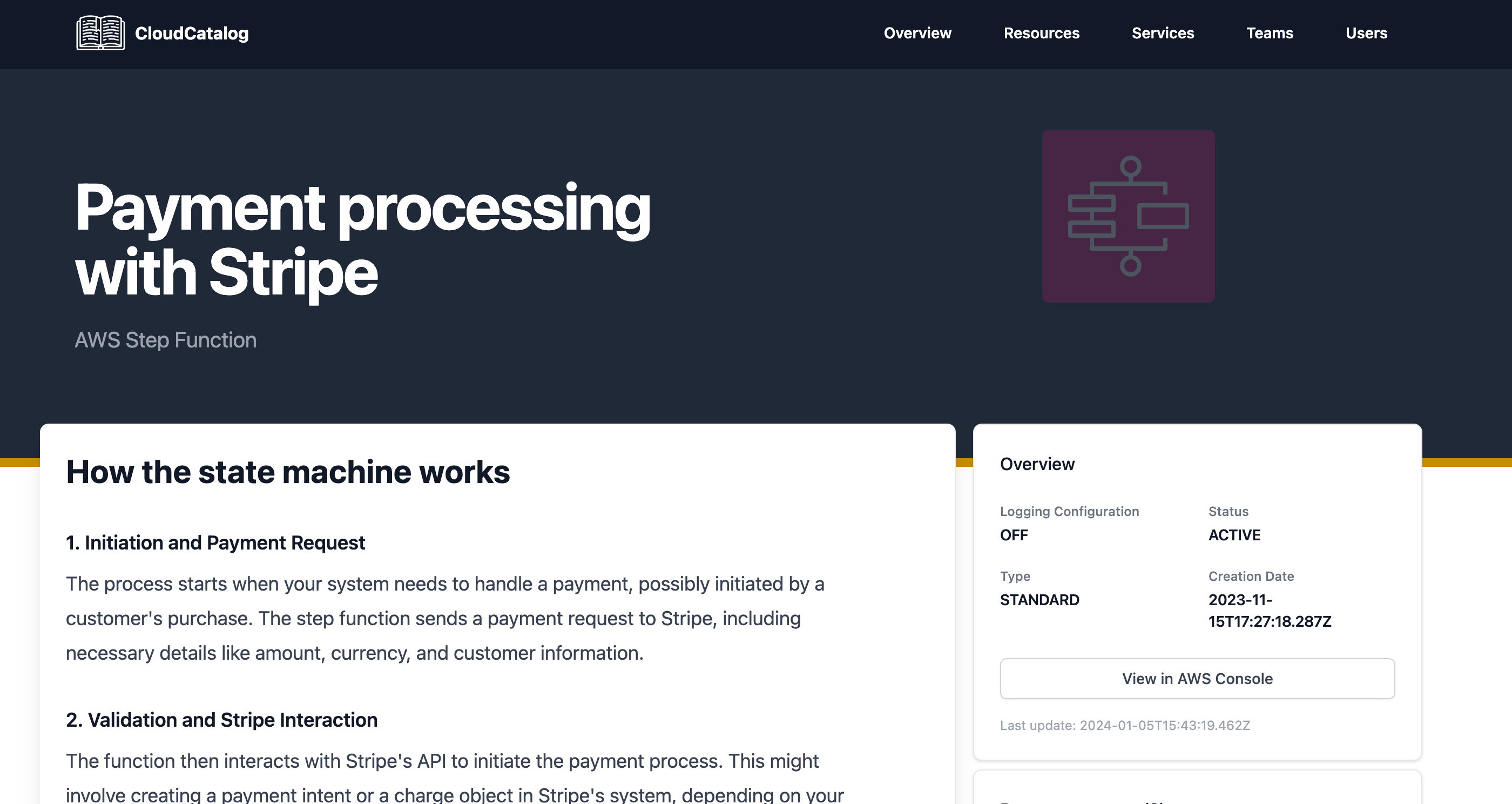

Example resource page​

Example of what the above resource would render.

Step Function Example
